Forged High Manganese Steel T38 HD155 Shank Adapter With Collet For Top Hammer Rock Drill Tunneling Mining

Product Categories
KSQ Technologies (Beijing) Co. Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

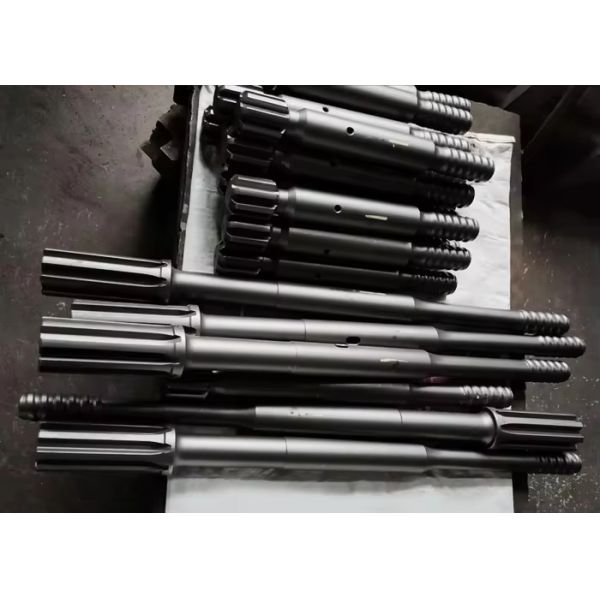

Forged High Manganese Steel T38 HD155 Shank Adapter With Collet For Top Hammer Rock Drill Tunneling Mining

  • 1
  • 2
  • 3

Brand Name : MIROC

Model Number : T38 HD155

Certification : ISO

Place of Origin : CHINA

MOQ : 1

Supply Ability : 3000

Delivery Time : 20-30

Type : Drill Shank

Use : Quarry,construction,blasting,open pit and underground mining,etc.

Advantage : factory price

Thread Type : T38

Color : customize

Heat treatment technology : Carburizaing

Contact Now

Forged High Manganese Steel T38 HD155 Shank Adapter With Collet For Top Hammer Rock Drill Tunneling Mining
KSQ offers a comprehensive range of shank adaptors designed to meet industry requirements for drill string interfaces. Our adaptors are compatible with both hydraulic and pneumatic drifters and top hammers, available in standard thread configurations. Precision grinding ensures optimal straightness, while advanced heat treatment provides complete carburization for maximum durability.
We provide specialized shank adaptors for major equipment brands including Atlas Copco, Tamrock, and Ingersoll Rand. Adaptors are available in various lengths and thread types to accommodate different applications within the same drill machine.
Key Performance Features
  • Superior quality construction
  • Exceptional wear resistance
  • High footage drilling speed
  • Minimal breakage rates
  • Reduced carbide loss percentage
  • Broad application compatibility
Compatible Drill Rig Brands and Drifters
Betopper Shank Adapters support major global drill rig brands and drifters including:
  • Atlas Copco (COP1238, COP1840, COP1638, COP1838, COP2150, COP2550, COP2160, COP2560)
  • Furukawa (HD609, HD709, HD612, HD712)
  • Sanduik (HL500, HL600, HL700, HL800, HL1000, HL1500, HLX5)
  • Ingersoll Rand (YH65, YH70, YH80, YH60, YH135)
  • Montabert (HC109, HC158, HC120, HC150, HC80)
Shank adapters serve as critical components in rock drilling systems, connecting rock drill drifter hammers to extension drill rods. Each adapter is precision carburized and manufactured with tight tolerances and controlled straightness for optimal performance.
Technical Specifications
BBC 54, BBC 120
Thread Length (mm) Diameter (mm) Flushing Tube (mm)
R32 380 38 9-11
R38 390 38 9-11
T38 390 38 9-11
BBE 57
Thread Length (mm) Diameter (mm) Flushing Tube (mm)
R38 447 45 14.3
T38 540 45 14.3
T45 540 45 14.3
Boart HD 155
Thread Length (mm) Diameter (mm) Flushing Tube (mm)
R32 580 55 -
T38 580 55 -
Furukawa HD 609
Thread Length (mm) Diameter (mm) Flushing Tube (mm)
T38 690 450 -
T45 690 450 -
Forged High Manganese Steel T38 HD155 Shank Adapter With Collet For Top Hammer Rock Drill Tunneling Mining Forged High Manganese Steel T38 HD155 Shank Adapter With Collet For Top Hammer Rock Drill Tunneling Mining Forged High Manganese Steel T38 HD155 Shank Adapter With Collet For Top Hammer Rock Drill Tunneling Mining Forged High Manganese Steel T38 HD155 Shank Adapter With Collet For Top Hammer Rock Drill Tunneling Mining
